High speed precision carving machine QBH650-HSKE32

High speed precision carving machine
&Nbsp; QBH650-HSKE32
&Nbsp;
Technology

Surgery

Regulations

Grid

book


Shenzhen Jingdiao CNC Equipment Co., Ltd
Address: Buildings 29, 30, and 31, Third Industrial Zone, Xitian Community, Gongming Street, Guangming District, Shenzhen

Telephone: 0755-29423909, 0755-29588251

Mobile phone: 13924586646 Mr. Zhou (same WeChat account)

Tiktok number: SDSK20211688

Email: sz_jdsk@163.com

Company website: www.cncjdj. com

Official website of Aluminum Profile Processing Center: www.szjdsk. cn

New Energy Vehicle Parts Network: www.sdskcnc. cn

1、 Machine Introduction:

1. The SDSK-QBH650-HSKE32 model is a three axis fully closed loop high-speed precision carving machine specially designed for customers; Equipped with a double row straight 18 position tool magazine; The movement mode is to move the Y-axis workbench forward and backward, the X-axis to move left and right, and the Z-axis to move up and down< Br/>
2. Fixed beam gantry structure; The body adopts a top-notch granite (marble) structure that never deforms; XYZ adopts imported Taiwan Shangyin precision linear guide rail, grinding grade ball screw, equipped with servo motor and optical ruler, German coupling, distribution cabinet constant temperature system, advanced spindle cooling system, automatic lubrication system, coolant circulation water spray system, air filtration device, ensuring higher processing accuracy, speed and stability< Br/>
3. Especially suitable for precision highlight, engraving and milling, drilling and other processing of various types of stainless steel, copper, aluminum, carbon fiber, PC, acrylic, plastic and other parts< Br/>
4. Additional four rotation axes and probes can be installed< Br/>

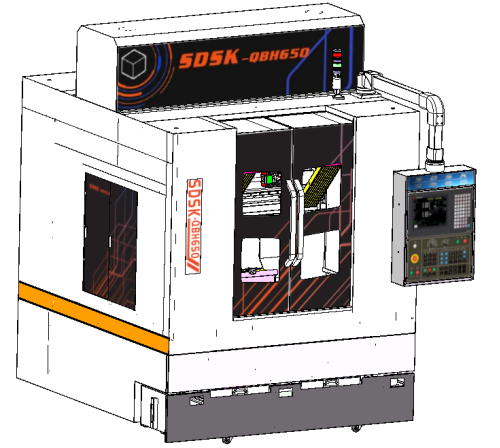

(The pictures are for reference only, subject to the actual product)



&Nbsp;
List of Main Machine Configuration (Unit: mm)
Number
Regulations; Grid; Speak; bright
quantity
Origin
&Nbsp;
New generation CNC system - full closed-loop
1 set
Taiwan
&Nbsp;
XYZ axis equipped with 1.0KW new generation servo motor, Z-belt clutch
1 set each
Taiwan
&Nbsp;
New generation frequency converter
1 unit
Taiwan
&Nbsp;
XYZ axis light distribution ruler (accuracy level 0.1um)
3 sets
Changchun
&Nbsp;
Dimensions of cast iron workbench: 600 in X direction, 500 in Y direction, thickness 50; (with T-slot)
1 set
self-control
&Nbsp;
Marble body, marble crossbeam
1 set
Shandong Province
&Nbsp;
Cast iron mechanical accessories
full set
self-control
&Nbsp;
Taiwan Shangyin/Intime Precision Linear Guideway (XYZ20) for XYZ Axis
full set
Taiwan
&Nbsp;
Taiwan Shangyin/Intime Precision Ball Screw (XY2510/Z2005) for XYZ Axis
1 set
Taiwan
&Nbsp;
Schneider Electric Accessories
1 batch
Germany
&Nbsp;
Permanent magnet synchronous electric spindle (model HSKE32-100-36000) 4.5KW, with encoder, pneumatic tool change
1 unit
Shenzhen
&Nbsp;
Equipped with double row straight 18 position tool magazine
1 set
self-control
&Nbsp;
Electric box thermostat
1 unit
Dongguan
&Nbsp;
Imported NSK/KOYO; P4 level angular contact paired bearing
full set
Japan
&Nbsp;
Spindle water cooler
1 unit
Dongguan
&Nbsp;
Electronic handwheel
1 set
self-control
&Nbsp;
X/Y/Z-axis equipped with three proof cloth organ cover/Y-axis stainless steel waterproof cover
1 set each
self-control
&Nbsp;
X/Y/Z axis plastic drag chain
1 set each
Dongguan
&Nbsp;
Automatic lubrication oil pump
1 set
Dongguan
&Nbsp;
Air filter
2 sets
Zhejiang
&Nbsp;
Water spray device
1 set
self-control
&Nbsp;
water pump
1 unit
Changzhou
&Nbsp;
Knife alignment instrument
1 unit
Shenzhen
&Nbsp;
HSKE32 knife handle (equipped with a full set of reduced nipples)
Two
Taiwan
&Nbsp;
Machine tool accessories
1 set
Shenzhen
3、 Main technical parameters of the equipment: (unit: mm)
model
SDSK-QBH650-HSKE32
External dimensions
Approximately 1850 in length, 1700 in width, and 2200 in height& Nbsp& Nbsp& Nbsp& Nbsp;
Workbench size XY
600 * 500 (T-groove M10)
Gantry width
680& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp;
Spindle nose end to countertop
Max 360~Min 60
X/Y/Z stroke
X: 600

Y: 500

Z: 300
Maximum fast moving speed XYZ
X: 30 meters per minute

Y: 30 meters/minute

Z: 15 meters per minute
Maximum processing speed
12 meters per minute
control system
Taiwan CNC System - Full Closed Loop
Contour control method (XYZ)
Full closed-loop
servo system
AC servo
System resolution
zero point zero zero one
Three axis verticality
0. 01mm
Processing accuracy
&Plusmn; 0.008mm
XYZ axis cutting accuracy
&Plusmn; 0.008mm
XYZ positioning accuracy
&Plusmn; 0.005mm
Repetitive positioning accuracy
0.004mm
Number of spindles
1 unit
Rated power of electric spindle
4.5KW
Rated torque of electric spindle (S7)
4.5N. m
Double row straight row tool magazine
18 digits
Knife changing method
automatic
Spindle speed
36000rpm/min
Clamping tool handle
HSKE32
Knife alignment method
automatic
The countertop bears a load
300Kg
Rated voltage
380V/50HZ
Maximum power of the entire machine
10KW
Overall weight
About 2500kg


4、 Standard configuration and accessories for the host:
one
Controller
eleven
1 mechanical, electrical, and operation manual
two
Electric spindle HSKE32-100-36000
twelve
Rigid tapping function
three
Automatic lubrication system
thirteen
Electrical box heat exchanger
four
Adjustable foundation cushion block
fourteen
Operation Manual, Program Manual, and User Manual
five
Toolbox
fifteen
HSK-E32 tool holder 2 (wrench)
six
Work lights
sixteen
1 HSK-E32 locking tool holder
seven
Warning lights
seventeen
M10 Ma Tie 1 set
eight
Spindle blowing device
eighteen
&Nbsp;
nine
transmission line
nineteen
Lock nozzle (4-10) 1 set
ten
Fully enclosed cover
twenty
Shield


5、 Machine environment and hardware facilities requirements:
Number
Environmental projects
Project Requirements Standards
one
Power requirements
AC380V (4P) 50-60Hz, air switch 60A, power supply voltage fluctuation range 380V± Within 10%
two
air compressor
Using screw compressor, air storage tank, three-stage filtration,≥ 0.55Mpa, flow rate≥ 100L/min
three
Vacuum pressure
&Ge; 0.6 MPa
four
Air dryer
Must have an air dryer with automatic drainage function
five
Environmental noise/vibration
&Le; 75dba
six
Ground requirements
The ground is required to be flat, stable, and the difference between the highest and lowest points should not exceed 5mm
seven
Environmental humidity
Suggest 45% -65%
