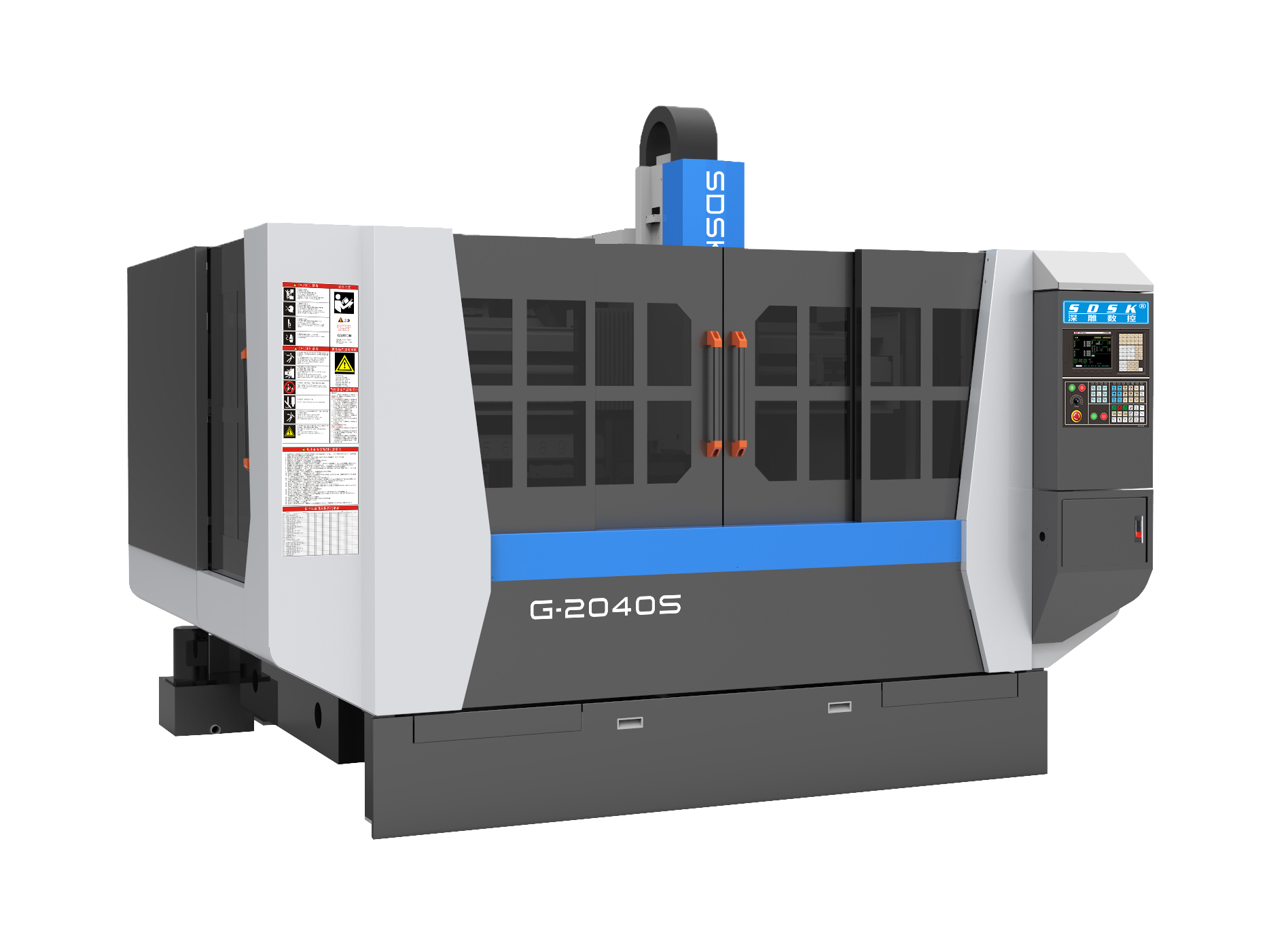

Large high-speed precision carving machine/SDSK-G2040S

Large high-speed precision carving machine/SDSK-G2040S

Description
1、 Machine Introduction:

The SDSK-G2040S model is a large high-speed precision carving machine specially designed for customers; Equipped with a 10 position straight row tool magazine; The movement mode is to move the Y-axis workbench forward and backward, the X-axis to move left and right, and the Z-axis to move up and down. The body adopts top-notch Jinan granite (marble) structure, which never deforms; The body adopts top-notch Jinan granite (marble) structure, which never deforms; Adopting a fully closed-loop Huazhong CNC system, imported linear motors for three axes, Taiwan Shangyin/PMI precision linear roller guide rails, advanced spindle cooling system, automatic lubrication system, and coolant circulation water spray system, ensuring higher machining accuracy, speed, and stability& Nbsp; Especially suitable for precision engraving, milling, tapping, and high gloss processing of various types of steel, copper, aluminum, acrylic, plastic and other parts< Br/>
Additionally, a fourth rotary shaft, side milling head, and probe function can be added. If higher requirements are needed for high gloss, an additional 60000 to 100000 rpm spindle, frequency converter, and jacket can be equipped, and the 30000 rpm spindle can be exchanged< Br/>
&Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp< Br/>
 < Br/>
&Nbsp< Br/>
&Nbsp< Br/>
(The pictures are for reference only, subject to the actual product)

&Nbsp< Br/>
2、 List of Main Machine Configuration (Unit: mm)

Number
Regulations; Grid; Speak; bright
quantity
1.
Electric cabinet: 2mm steel plate, baked paint (stainless steel water tank)
1 set
2.
Aluminum workbench size: 2000 in X direction, 400 in Y direction, thickness 50, with T-shaped groove
1 set
3.
Marble body, marble crossbeam
1 set
4.
Imported linear motor for X/Y/Z axis/equipped with Gaochuang servo drive
full set
5.
X/Y/Z using an American grating ruler, reading head (0.1)
full set
6.
Use Taiwan Shangyin/PMI for X/Y/Z axis& Nbsp; Precision linear roller guide rail
full set
7.
Huashu CNC System HNC-818AM - Full Closed Loop
1 set
8.
Variable frequency drive; (with encoder)
1 set
9.
Schneider Electric Accessories
1 batch
10.
Electric spindle (models BT30/7.5-125); 30000rpm, 7.5KW, with encoder, using BT30 blade handle, outer diameter 125mm, with encoder
1 unit
11.
Straight 10 position tool magazine (steel claw)
1 set
12.
Spindle water cooler
1 unit
13.
Electronic handwheel
1 set
14.
Knife alignment instrument
1 unit
15.
X/Y/Z axis with three proof cloth organ cover/Y axis with steel plate cover
1 set each
16.
X/2Y/Z-axis plastic drag chain
1 set each
17.
Automatic lubrication grease pump 2 liters
1 set
18.
air filter
2 sets
19.
Water spray device/spray device
2 sets each
20.
Water pump LDPB 4-18/480W
1 unit
21.
Tools and Toolboxes
1 set
22.
Machine tool accessories
1 set
23.
BT30 knife handle
Two
24.
Y-axis spiral automatic slag discharge system (optional)
1 set
25.
Slag discharge machine (optional)
1 set
&Nbsp< Br/>


3、 Main technical parameters of the equipment: (unit: mm)

model
SDSK-G2040S
External dimensions
3400 length * 1600 width * 2800 height
Workbench size
2000 * 400
X/Y/Z stroke
2050 * 450 * 350
Maximum air travel speed
100000mm/min
Maximum processing speed
12000mm/min
control system
Huashu Drilling Center CNC System - Full Closed Loop
servo system
XYZ high-tech servo drive
System resolution
zero point zero zero one
Three axis verticality
0.015mm
Whole machine positioning accuracy
0.01mm
Localization accuracy
Within 300mm, it is 0.005mm
Repetitive positioning accuracy
0.002mm
Number of spindles
1 unit
Spindle power
7.5KW/piece
Knife changing method
automatic
Spindle speed
30000rpm/min
Clamping tool handle
BT30 (maximum 12mm)
Knife alignment method
automatic
Loading height
300mm
The countertop bears a load
500Kg
Rated voltage
380V/50HZ
Maximum power of the entire machine
15KW
Overall weight
About 5000KG
